VistaVox S
The 2D/3D hybrid system with a unique jaw-shaped imaging volume.
Panoramic X-ray and CBCT 3D in one device — with anatomically adapted FOV, 17 panoramic programs, SQ low-dose mode and S-Pan sharpness technology.
Jaw-Shaped CBCT Volume for Complete Arch Coverage
The VistaVox S from Dürr Dental is a versatile 2D/3D hybrid imaging system that combines high-quality panoramic X-ray with precise CBCT 3D imaging. Its unique jaw-shaped imaging volume (Ø 130×85 mm) follows human anatomy more closely than standard cylindrical volumes, ensuring complete coverage of the entire dental arch — including rear molars.
With 17 panoramic programs, SQ low-dose mode (62% less radiation than HQ), S-Pan sharpness technology and 3D metal artefact reduction, the VistaVox S delivers outstanding diagnostic quality at the lowest possible dose.
- Panoramic 2D and CBCT 3D imaging in one device
- Unique jaw-shaped FOV: Ø 130×85 mm (adult) / Ø 130×70 mm (child)
- 10 small volumes Ø 50×50 mm for endodontic diagnostics
- 17 panoramic programs including child, TMJ, sinus & orthogonal
- SQ Mode — 62% less dose than HQ mode
- S-Pan technology for pinpoint-accurate panoramic images
- 3D Metal Artefact Reduction (MAR)

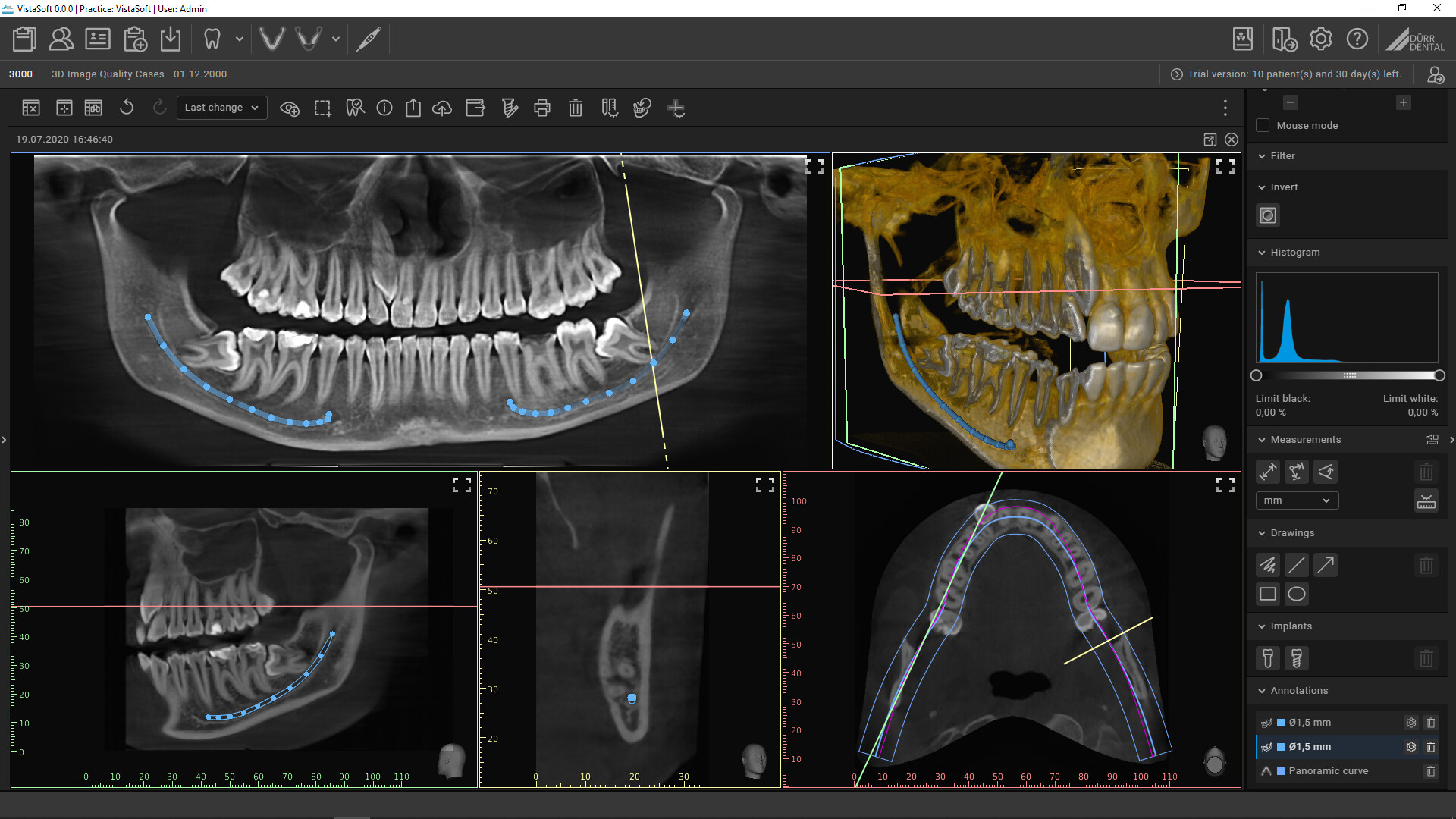

- VistaSoft 3D software — DICOM compatible
Panoramic Programs
17 Programs
Designed for Efficiency & Precision
Every aspect of the VistaVox S is engineered to support your clinical workflow — from fast patient positioning to high-resolution 3D reconstruction with metal artefact reduction.
Jaw-Shaped 3D Volume
Unique anatomically adapted jaw-shaped FOV (Ø 130×85 mm) covers the entire dental arch including rear molars — more effectively than standard cylindrical volumes.
17 Panoramic Programs
Comprehensive program range including 4 child programs (up to 56% dose reduction), 5 orthogonal programs, TMJ, sinus and more.
SQ Mode — 62% Less Dose
Standard Quality mode uses 62% less radiation than HQ mode, ideal for implant planning and sinus investigations while maintaining diagnostic accuracy.
7" Touchscreen Interface
Intuitive glass touch display for simplified navigation through all 17 programs, patient positioning and scan initiation.
S-Pan Technology
Automatically selects the sharpest image areas from multiple parallel layers to create a pinpoint-accurate panoramic image — compensating for minor positioning errors.
3D Metal Artefact Reduction
Advanced MAR algorithms automatically eliminate shadows and streaks caused by metal prosthetics or implants in 3D reconstructions.

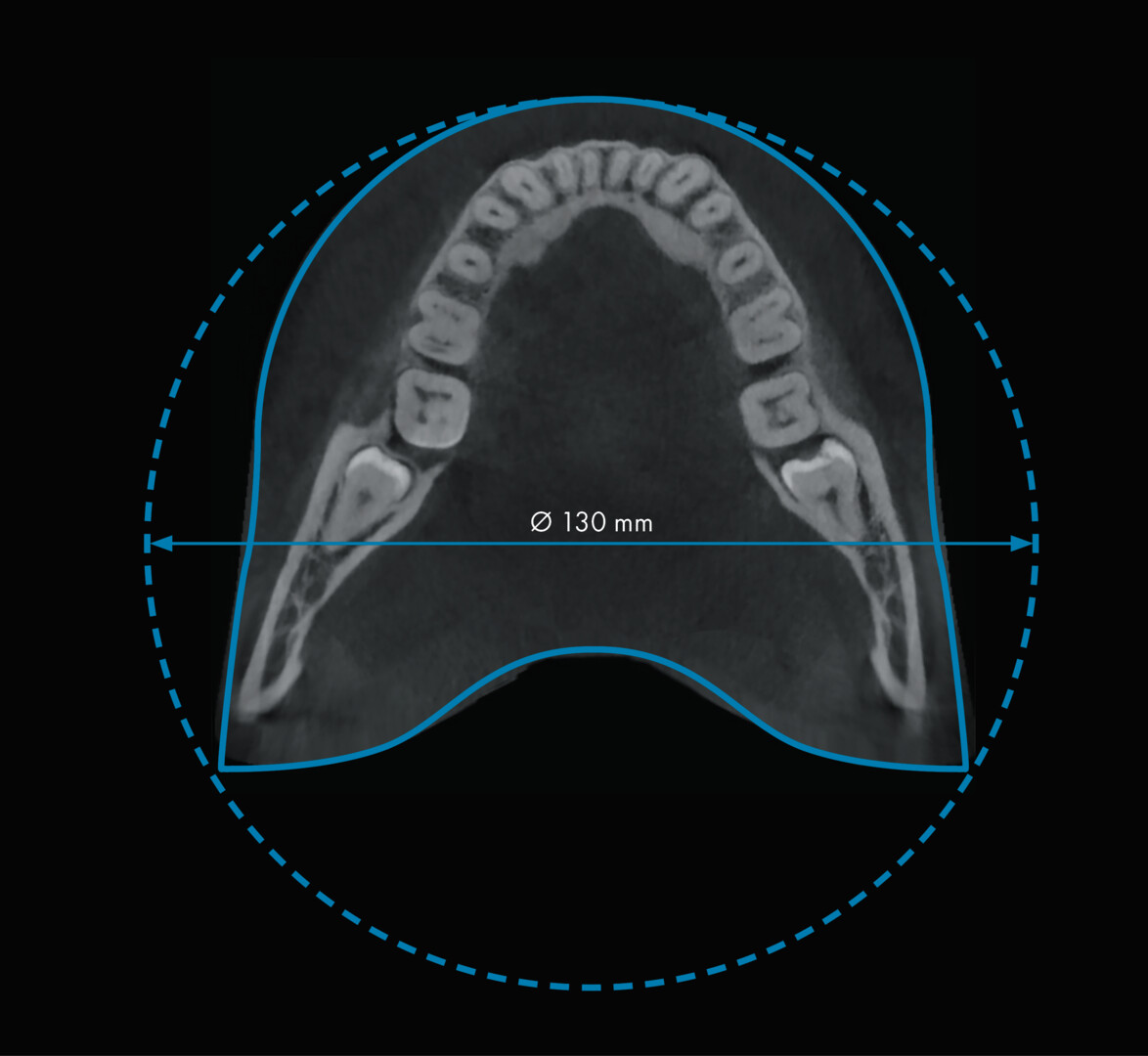

Anatomically Adapted Fields of View
The jaw-shaped volume follows human anatomy more closely than traditional cylinders, ensuring complete diagnostic coverage while keeping dose to a minimum.
Ø 130×85 mm
Adult Full Arch
Jaw-shaped volume covering the entire dental region including rear molars
Ø 130×70 mm
Child Mode
Reduced volume minimising radiation exposure to sensitive areas such as the eyes
Ø 50×50 mm
Endodontic / Small Volume
10 targeted volumes (5 upper, 5 lower jaw) for high-resolution localised diagnostics

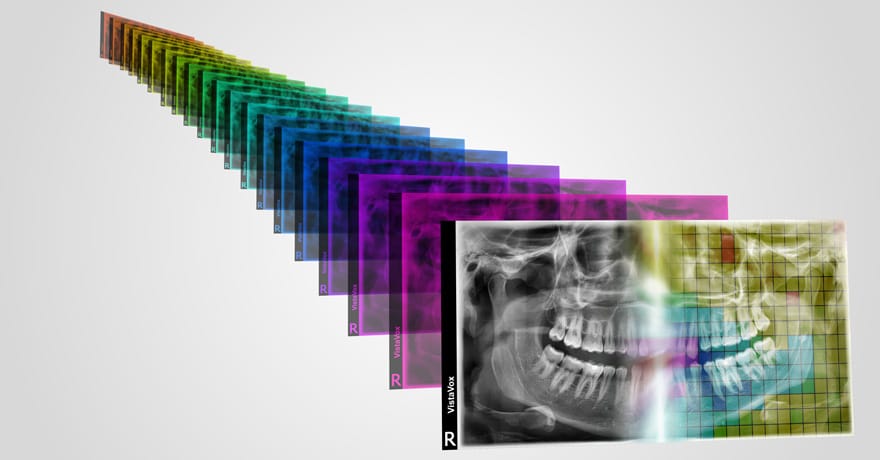

17 Panoramic Programs for Every Clinical Need
Beyond 3D CBCT, the VistaVox S offers 17 panoramic programs — including 4 dedicated child programs reducing dose by up to 56%, 5 orthogonal programs and specialist modes for TMJ, sinus and bitewing diagnostics.
Standard Panoramic
Full arch overview for routine diagnostics with S-Pan sharpness optimisation
Child Programs (×4)
Reduced dose protocols cutting exposure by up to 56% for younger patients
Orthogonal Programs (×5)
Distortion-free orthogonal projections for precise measurements
TMJ (Open & Closed)
Temporomandibular joint imaging in open and closed mouth positions
Sinus
Maxillary sinus overview with SQ low-dose mode option
Bitewing
Interproximal caries detection with optimised exposure
Clinical Applications
From routine panoramic diagnostics to advanced 3D implant planning, the VistaVox S supports the full breadth of modern dental specialties.
Endodontics
High-resolution Ø 50×50 mm small volumes for precise root canal morphology assessment and treatment planning.
Implant Planning
Full jaw-shaped 3D volume with SQ mode for accurate bone volume, density and nerve canal visualisation at reduced dose.
Oral Surgery
Pre-surgical 3D planning for impacted teeth, extractions and complex surgical cases with MAR for metal artefact-free imaging.
Periodontics
Detailed assessment of bone defects, furcation involvement and periodontal architecture across the full arch.
TMJ Analysis
Dedicated panoramic TMJ programs with open and closed mouth imaging for comprehensive joint evaluation.
Paediatric Dentistry
4 dedicated child programs reducing dose by up to 56%, with a reduced Ø 130×70 mm volume to protect sensitive areas.
Intelligent Dose Management & Intuitive Workflow
The VistaVox S applies the ALARA principle throughout. SQ Mode reduces radiation by 62% compared to HQ mode, making it ideal for implant planning and sinus investigations. Precise collimation to the selected volume and intelligent scan protocols keep patient dose as low as reasonably achievable.
The 7" glass touchscreen guides the operator through every step: program selection, patient positioning with three laser light lines (sagittal, Frankfurt plane and Canine for 2D; two lines for 3D), and scan initiation — making the entire workflow fast, reliable and reproducible.
Technical Details
Ready to upgrade your practice?
Experience the VistaVox S
Contact our specialists today to arrange a live demonstration and discover how the VistaVox S can elevate your diagnostic capabilities with its unique jaw-shaped CBCT volume, 17 panoramic programs and intelligent dose management.
